Doorway Pull-Up Bars: Check the Bar and Frame Before Buying
A doorway pull-up bar needs a suitable frame and the correct installation method. Compare two designs, one named bar's manual requirements and the checks to complete before ordering.
A doorway pull-up bar is a sensible home option only when the exact bar and its installation method suit your doorway. Start with the frame and the manufacturer's manual. The words “no screws” or “fits standard doors” do not establish that a particular HDB or condo doorway can support it.
This buying review compares two designs and examines one named bar, the ProsourceFit Multi-Grip Pull-Up Bar. Manufacturer sources were checked on 1 October 2026. The bar is a candidate for a fit check; Gyms.sg has not tested it or verified current Singapore stock.
Two designs with different installation requirements
| Design | Example | What decides suitability |
|---|---|---|
| Telescopic bar pressing between opposing surfaces | No model reviewed here | Permitted span, supporting surface, lock and whether screws are used |
| Bar hooking over a doorway with several hand positions | ProsourceFit Multi-Grip | Opening width, frame depth, moulding and the complete support arrangement |
Neither design bypasses the doorway's construction. A pressure bar and a hooked bar also cannot share an installation checklist just because both are removable. Check the model reference on the box before using a manual found online.
The ProsourceFit candidate
The current Multi-Grip manual specifies a doorway width of 61 to 91 cm, depth of 12 to 16 cm and moulding width up to 9 cm. It lists a 136 kg user limit, requires a secure doorway and warns against swinging or bouncing. Optional J brackets have their own mounting instructions.
Those dimensions apply to the Multi-Grip model in that manual. They do not transfer to the Multi-Grip Lite or Foldable Doorway versions. The manufacturer's product summary also uses different wording for frame thickness, so obtain confirmation if your measurements fall near a boundary.
This is the candidate to investigate when you want its several grip positions and your frame matches the full support geometry. Measure both sides of the opening, including the surfaces the bar touches. A doorway that is wide enough may still have unsuitable trim or insufficient space around it.
Complete this check before ordering
- Identify the bar. Save the exact product name, reference and matching manual. Ask for missing instructions before payment.

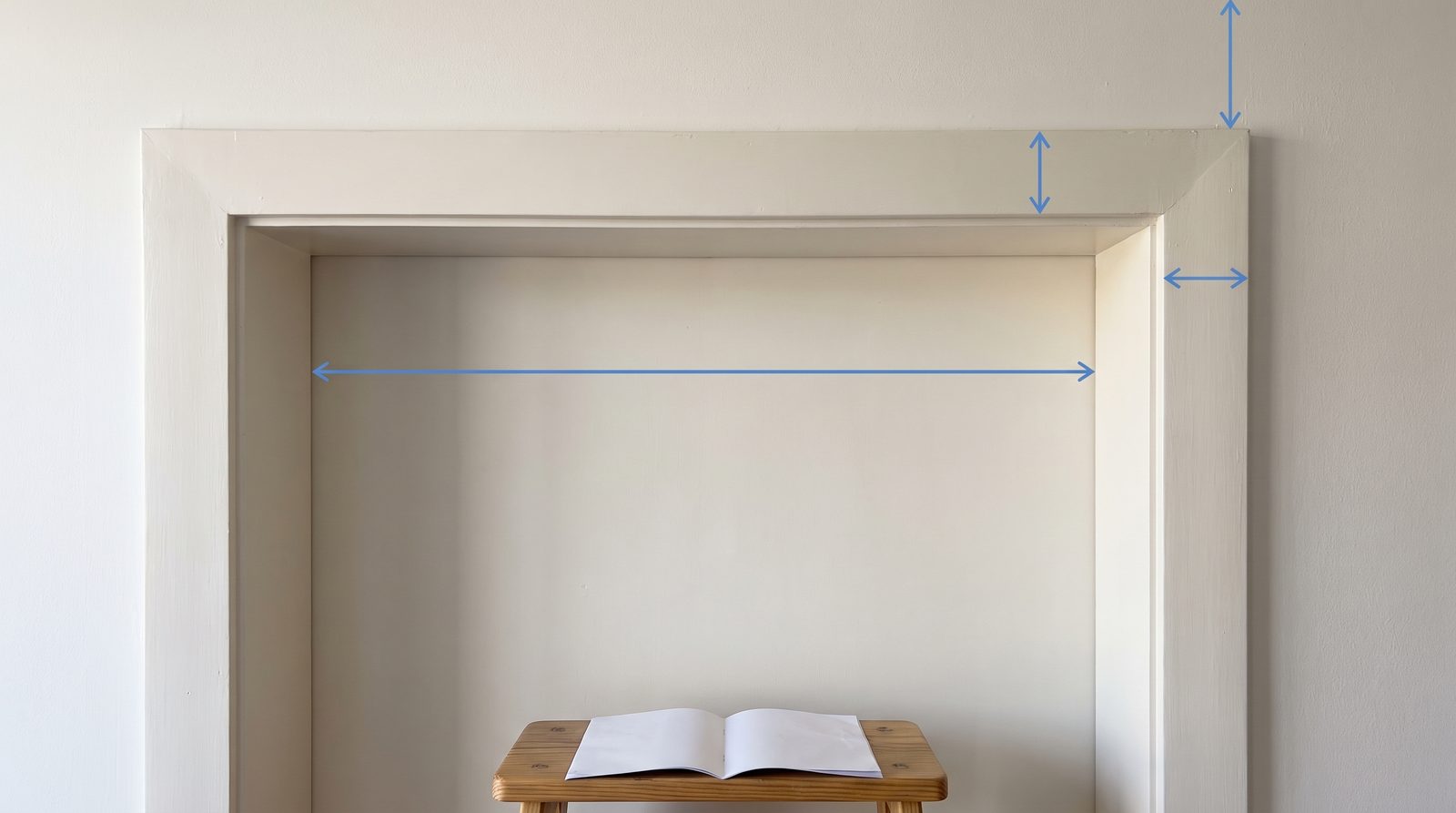

- Measure the installation. Record opening width, depth, trim and obstructions required by that manual. Photograph the intended contact areas.
- Confirm the support. If the construction or condition is uncertain, obtain appropriate installation advice. Do not test an unknown frame by hanging from it.
- Confirm permitted use. Match the manufacturer's limit and exercise restrictions to the intended use. Extra weights and swinging are not automatically allowed because your body weight is below a headline limit.
- Check alterations and returns. Establish any permission needed for drilling, and the seller's return conditions if the bar cannot be installed as specified.
Plan for everyday use, not just the first installation
A doorway may also be a bedroom entrance or a route used by other household members. Decide where the removed bar will be stored, whether the door can operate as needed and how you will keep the exercise area clear. Leave the installation instructions with the equipment so another user does not copy an incomplete setup.
Follow the model's inspection and care instructions. Stop using a bar with damaged pads, a failed lock, loose components or a shifting support. There is no universal foam-replacement interval that makes all doorway bars safe.
When to choose another setup
If the doorway cannot be confirmed suitable, compare a properly installed fixed bar, a freestanding station with adequate space, or equipment available at a gym. Each alternative needs its own installation or fit check. A suspension trainer is a different piece of equipment and does not answer the need for a conventional pull-up bar.
Put the measurements and storage plan into the Home Gym Planner. Our HDB home-gym planning guide helps you decide whether the bar belongs in the wider setup before you buy it.
